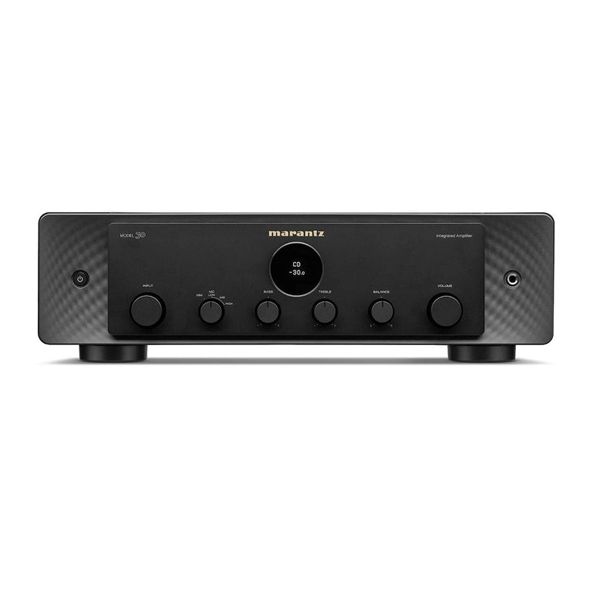

Marantz MODEL 30 Integrated Amplifier
₹521,900.00
Availability: In stock
SKU:
MODEL 30
- Artisinal Design
- 2.2 Channels
- 100 Watts Per Channel
- Custom HDAM
- 3 Year Warranty
- Independent pre-amplifier and power amplifier section Toroidal transformer feed power supply dedicated to pre-amplifier
- Current feedback pre-amplifier design for clarity and details
- Marantz HDAM technology for low noise and extended frequency range
- Linear volume control with new electric volume system for best linearity
- Switching mode power amplifier with dedicated SMPS power supply
Hurry Up! Sold: 0/2 products in stock.
Features
- Amplifier Circuit - Switching Amp(Hypex NC500/SMPS600
- by single)
- Power Trans - Toroidal w/case
- Volume - Electric
- Loudness - No
- Bass / Treble / Mid / Balance Control - yes / yes / No / yes
- REC Out Select - No
- Source Direct - yes
- Pure Direct - No
- (Marantz) Purest Mode - No
- Isolator (for USB-B input) - No
- Jitter reducer - No
- Dual Clock: 44.1 / 48 kHz - No
- Digital Filter - No
- Analog Amp Mode - No
- Wide Range - 5Hz - 50kHz
- Total Harmonic Distortion - 0.005% (1kHz, 8Ω)
- Damping Factor - 500
- Input Sensitivity: Phono input - MM: 2.3 mV / 39 kohm
MC: 250 - Input Sensitivity: CD/Line/Recorder - 220 mV / 13 kohm
- Input Sensitivity: Power Amplifier input - 1.1 V / 13 kohm
- SN Ratio - PHONO (MM): 88dB
PHONO (MC): 75dB
CD: 107dB
Terminal
- Phono Input - yes (MM/MC)
- Pre Input (Power Amp Direct) - yes
- Preout - yes
- Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out - 6/1 (PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER)
* [PHONO] and [CD] inputs = high grade terminals. - Balanced XLR input - No
- Rec-Out Selector - No
- Optical input - No
- Coaxial input - No
- USB A - No
- USB B - No
- HDMI - No
- DAC - No
- 2 sets of Spk Terminal - No
- Speaker Terminal - Marantz Original
SPKT-100+ - Remote Control Bus Terminal - yes (Cinch)
- NFC - No
- Ethernet - No
Network
- Engine - No
- Computer music file streaming - No
- Gapless Playback Music ServerUSB A - No
- Internet radio - No
- AirPlay 2 - No
- GoogleCast - No
- Album art browsing - No
- Jpeg Picture Playback - No
- Cloud Music Service - No
- WPS Wi-Fi Protected Setup - No
- Wi-Fi Sharing - No
- WMM - No
- OFF mode - No
- Multi-Poimt - No
UI
- Display - yes (Porthole, OLED)
Control
- App Control via Network Player - yes
- System Remote Controller - yes (New system remote controller to control SACD 30 and MODEL 30)
- RS232C - No
- Flasher Input - No
- Trigger 12V - No
- TV Auto-play (Opt/Coax digital-in sensor) - No
Others
- Unit (W x H x D mm) - 443 x 130 x 432
- Packaging Dimensions (W x H x D mm) - 534 x 255 x 522
- Net weight - 14.8kg
- Packaging gross weight - 17.6kg
- Power Consumption - 130W
- at Standby - 0.2W
- at Network Control On (all of Bluetooth, Ethernet, Wi-Fi, USB) - No
- AC Inlet - yes
- AC Outlet - No
- Owner's Manual - Web Manual
- Quick Start Guide - Paper
- Chassis Material - SECC
- Chassis Layer - Triple
- Foot - New
