Specifications
-
Output
- Output Impedance: 50 ohms
- Output Digital 0 dB level: RCA 2.2 V RMS nominal
-
DAC
- DAC circuit: 24-bit Delta-Sigma (bitstream) dual differential 8x over-sampling
- Total Correlated Jitter: < 135 picoseconds, peak-to-peak
- Linearity: < 0.1 dB down to -96 dB
- Frequency Response: 10 Hz – 20 kHz -0.2 dB max
- Channel Separation: > 105 dB, 20 Hz – 20 kHz
- Signal-to-Noise Ratio: > 117 dB A-Weighted
- Total Harmonic Distortion: < 0.003 % 10 Hz – 20 kHz
-
Connections
- Line level Outputs: 1 pair line level RCA connectors, left and right outputs
- Digital Outputs: 1 RCA coaxial connector SPDIF, 1 TOSLINK optical connector
-
Power
- Mains Voltages: 115 / 230 V AC 50 / 60 Hz (factory pre-set), 100 V AC 50 / 60 Hz (alternative)
- Consumption: 20 W max
-
General
- Weight: Unboxed 6.65 kg / Boxed 10.5 kg
- Dimensions WxHxD: 440 x 100 x 375 mm
Features

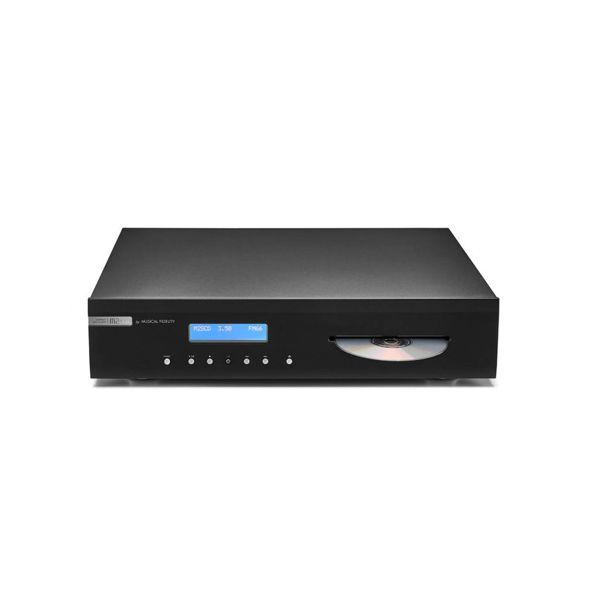

- Premium CD player, working to Red Book standard.
- 24-bit Delta-Sigma conversion with 8x oversampling.
- Fixed Line out (RCA pair).
- S/PDIF digital outputs (Coaxial RCA + Optical TOSLINK).
- Very low jitter rating of < 135 ps peak-to-peak).
- SMD construction optimises noise levels.
- Choke regulated power supply.
- IR remote control.
- Black or Silver Finish.
