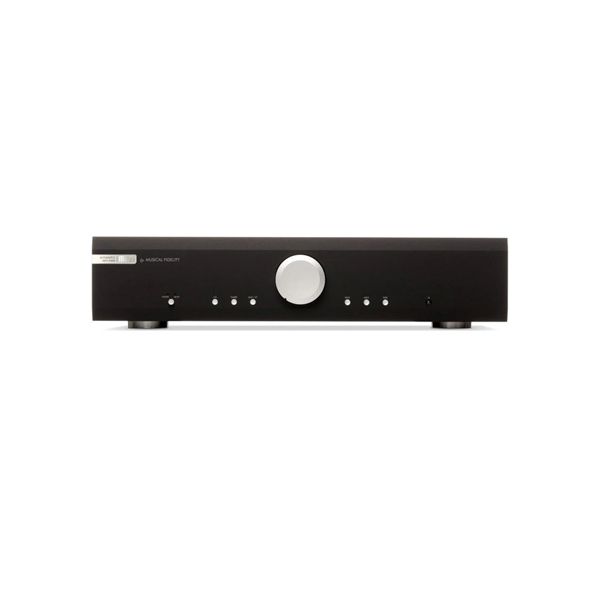

Musical Fidelity M2Si - Integrated Amplifier

Specifications

• Power 72 Watts per channel into 8 Ohms (18dBW)
• Voltage 22 Volts RMS, 20Hz to 20 kHz; onset of clipping
• 62 Volts peak to peak
• Current 25 Amps peak to peak
• Damping factor 36
• Output devices 1 pair per channel
• THD+N < 0.014 % typical, 20Hz to 20 kHz
• Signal / noise ratio > 96dB ‘A’-weighted
• Input impedance 40 k Ohms
• Frequency response +0, –0.1dB, 10Hz to 20 kHz
• Line level inputs 6 pairs line level RCA connectors
• Line level outputs 1 pair line level RCA connectors, constant level TAPE outputs
• 1 pair line level RCA connectors, preamp outputs for e.g. bi-amping
• Speaker outputs 2 pairs 4mm banana plug/binding posts
• Mains voltage 230VAC 50/60Hz (factory pre-set)
• Consumption 320 Watts maximum
• Weight: Unit only, unboxed 9.2 kg (20¼ lbs), In shipping carton 13 kg (30⅔ lbs)
• Dimensions: Wide 440 mm (17⅓”). High, including feet 100 mm (4”). Deep (front to back) including terminals 400 mm (15¾”)
